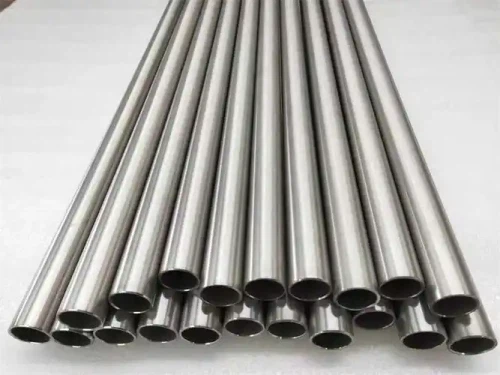

Titanium Grade 1 Tube
Standards: ASTM B337, ASTM B338, ASTM B861
Product Types: Seamless Tube/Welded Tube
Density: 4.51 g/cm³
Seeking tubing that maintains exceptional performance in extreme corrosive environments? Titanium Grade 1 Tube is your ideal choice! As the grade with the best plasticity and corrosion resistance in the pure titanium family, Gr1 titanium tubes are highly favored in high-end applications such as chemical processing, marine engineering, and medical devices.
Why Choose Our Titanium Grade 1 Tube?
✅ Unmatched Corrosion Resistance - Excellent resistance to seawater, chlorine, various chemicals, with service life far exceeding stainless steel
✅ Superior Formability & Weldability - Best processing performance among pure titanium grades, easily fabricated into complex shapes
✅ Perfect Biocompatibility - Medical-grade certified, suitable for demanding medical device manufacturing
✅ Excellent Low-Temperature Toughness - Maintains outstanding performance even in extreme cold environments
✅ Lightweight & High Strength - Only 60% the weight of steel, yet much stronger than ordinary steel
Specifications
Material Grade: Titanium Grade 1 Tube
Standards: ASTM B337, ASTM B338, ASTM B861
Product Types: Seamless Tube/Welded Tube
Density: 4.51 g/cm³
Outer Diameter: 3mm - 100mm (Customization Available)
Wall Thickness: 0.5mm - 10mm
Length: Custom Cut, Up to 15 meters
Chemical Composition - Ensuring Material Purity
| Element | Content Standard (%) |
|---|---|
| Titanium (Ti) | Balance |
| Oxygen (O) | ≤ 0.18 |
| Iron (Fe) | ≤ 0.20 |
| Nitrogen (N) | ≤ 0.03 |
| Carbon (C) | ≤ 0.08 |
| Hydrogen (H) | ≤ 0.015 |
Mechanical Properties - Reliable Structural Assurance
| Property | Standard Value | Typical Test Value |
|---|---|---|
| Tensile Strength | ≥ 240 MPa | 280-350 MPa |
| Yield Strength | ≥ 170 MPa | 200-250 MPa |
| Elongation | ≥ 24% | 28%-35% |
| Elastic Modulus | 105 GPa | 105 GPa |
| Hardness (HB) | ≤ 120 | 100-115 |
Technical Support
Our engineering team provides free technical support:
Assist with tube size selection (based on pressure, temperature, and fluid type).
Provide welding guidelines (e.g., TIG welding parameters for Gr1 titanium-argon shielding gas, low heat input).
Offer corrosion resistance consulting (e.g., compatibility with specific chemicals).
Call to Action - Get Your Custom Solution
Mob: +86-13772502581
Email: judesteel@juqing.hk
We are committed to providing high-quality Titanium Grade 1 Tube and professional services to meet your industrial needs!
