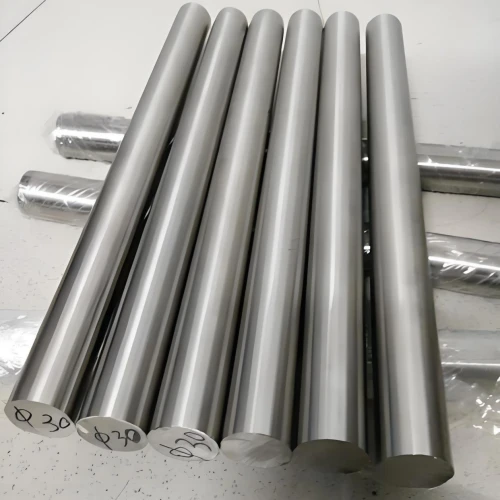

Ti-6Al-4V Titanium Alloy Rod
Standard Designations：UNS R56400, ASTM Gr5, ISO 5832-3
Density：4.43 g/cm³
Melting Point： Approx. 1604 - 1660 °C
What Is Ti-6Al-4V Titanium Alloy Rod?
Ti-6Al-4V Titanium Alloy Rod, the most widely used titanium alloy globally, is recognized as the workhorse of the titanium industry. Building upon the excellent corrosion resistance of commercially pure titanium, the addition of aluminum and vanadium creates an optimal balance between strength and weight. A proven and reliable choice, Gr5 is specified for demanding aerospace applications and critical medical implants alike.
Product Specifications
| Item | Details |
|---|---|
| Common Name | Ti-6Al-4V, Grade 5 Titanium |
| Standard Designations | UNS R56400, ASTM Gr5, ISO 5832-3 |
| Chemical Composition | Ti (Bal.), Al (5.5-6.75%), V (3.5-4.5%), Fe (max 0.25%), O (max 0.20%) |
| Tensile Strength | ≥ 895 MPa (min) |
| Yield Strength | ≥ 828 MPa (min) |
| Elongation | ≥ 10% |
| Density | 4.43 g/cm³ |
| Melting Point | Approx. 1604 - 1660 °C |
Main Application Fields
Aerospace: Provides an unmatched strength-to-weight ratio and high-temperature performance for airframe components, engine parts, and landing gear.
Medical & Dental: As an ASTM F136 certified implant-grade material, it is used in artificial joints, dental implants, and surgical instruments, ensuring biocompatibility and long-term in vivo safety.
Marine & Offshore: Offers superior resistance to seawater corrosion for piping, pumps, valves, and ship components, significantly outperforming stainless steel in service life.
High-Performance Automotive & Racing: Used for connecting rods, valves, and chassis components to achieve weight reduction, improve fuel efficiency, and performance.
Chemical Process Industry: Used in equipment handling chlorides, nitric acid, and other media, providing a long-term corrosion-resistant solution.
Ti-6Al-4V Titanium Alloy Rod Physical Properties
| Property | Value |
|---|---|
| Material Grade | Ti-6Al-4V (Grade 5) |
| Standard | ASTM B348 |
| Density | 4.43 g/cm³ |
| Melting Range | 1,604–1,660°C (2,919–3,020°F) |
| Thermal Conductivity | 6.7 W/m·K (at 20°C) |
| Electrical Resistivity | 1.71 μΩ·m (at 20°C) |
| Specific Heat Capacity | 560 J/kg·K |
| Coefficient of Thermal Expansion | 8.6 × 10⁻⁶ /°C (20–100°C) |
| Elastic Modulus (Young's Modulus) | 114 GPa |
| Poisson's Ratio | 0.34 |
| Magnetic Properties | Non-Magnetic |
| Thermal Diffusivity | ≈2.7 mm²/s |
Ti-6Al-4V Titanium Alloy Rod Mechanical Properties
| Property | Metric | Imperial |
|---|---|---|
| Tensile Strength | ≥ 895 MPa | ≥ 130 ksi |
| Yield Strength (0.2% Offset) | ≥ 828 MPa | ≥ 120 ksi |
| Elongation | ≥ 10% | ≥ 10% |
| Reduction of Area | ≥ 25% | ≥ 25% |
| Hardness | 30–36 HRC (Approx. 334–349 HB) | 30–36 HRC |
| Elastic Modulus (Young's Modulus) | 114 GPa | 16.5 × 10⁶ psi |
| Fatigue Strength (10⁷ Cycles) | ≈ 510 MPa | ≈ 74 ksi |
| Shear Strength | ≈ 550 MPa | ≈ 80 ksi |
| Poisson's Ratio | 0.34 | 0.34 |
Ti-6Al-4V Titanium Alloy Rod Chemical Composition
| Element | Composition (%) |
|---|---|
| Titanium (Ti) | Balance |
| Aluminum (Al) | 5.50 – 6.75 |
| Vanadium (V) | 3.50 – 4.50 |
| Iron (Fe) | ≤ 0.30 |
| Oxygen (O) | ≤ 0.20 |
| Carbon (C) | ≤ 0.08 |
| Nitrogen (N) | ≤ 0.05 |
| Hydrogen (H) | ≤ 0.015 |
| Yttrium (Y) (if specified) | ≤ 0.005 |
Standard: ASTM B348 / ASTM F136 (medical grade has additional requirements) / AMS 4928 (aerospace applications)
Chemical Composition Features
Aluminum (Al)
Aluminum is the primary alpha-phase stabilizer in Ti-6Al-4V, significantly improving strength, hardness, and heat resistance while maintaining a lightweight structure.
Vanadium (V)
Vanadium acts as a beta-phase stabilizer, enhancing toughness, ductility, fatigue resistance, and heat treatment response.
Low Interstitial Elements
Strict control of oxygen, carbon, nitrogen, and hydrogen helps maintain excellent ductility, fracture toughness, weldability, and fatigue performance.
High-Purity Titanium Matrix
The balance of titanium provides exceptional corrosion resistance in seawater, chloride solutions, oxidizing acids, and many harsh industrial environments.
Our Services
Deep Processing Capacity
Custom cutting, bending, U-tube forming, end beveling, polishing and pipe prefabrication as drawings.
Technical Support
Free material selection advice; supply full test reports & MTC certificates; cutting, bending and welding technical guidance.
After-sales Warranty
Guaranteed material composition & dimension; free replacement for unqualified goods within 7 days after receiving; full batch traceability.
Lead Time
10–15 days for standard pipes; 15–25 days for deep-processed customized pipes.
Frequently Asked Questions (FAQ)
Q: What is the main difference between Gr5 Titanium Alloy and Gr2 titanium?
A: Gr5 is an alpha-beta alloy with approximately twice the strength and hardness of commercially pure Gr2 titanium, though with slightly lower formability. Gr5 is selected for applications requiring higher mechanical performance.
Q: Is your Gr5 material compliant with medical implant standards?
A: Yes. We supply ASTM F136 compliant Ti-6Al-4V ELI (Extra Low Interstitial) grade material, specifically designed for surgical implants, offering enhanced fracture toughness and biocompatibility.
Q: Can you supply custom-sized machining stock?
A: Absolutely. Our advanced CNC machining centers allow us to provide finished "ready-to-install" components per your drawings, saving you time and production costs.
Q: What is your Minimum Order Quantity (MOQ)?
A: We supply small quantities for R&D projects and also support large-scale production orders. Please get in touch with us for Ti-6Al-4V Titanium Alloy specific quotation details.
