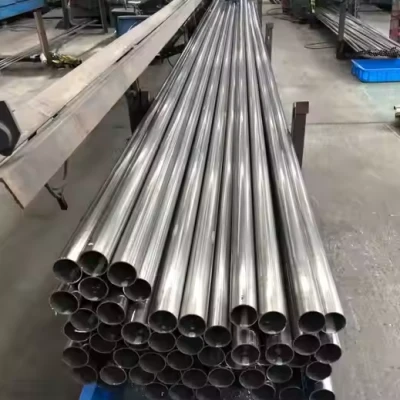

ASTM A270 Sanitary Tubing
Grade: TP304, TP304L, TP316, TP316L, S31254, N08926, N08367, S31803, S32205, S32750, S32003
Process: Seamless, Welded, Heavily Cold Worked Welded
Outside Diameter: 12.7 - 304.8mm
Wall Thickness: 1.5-3.4mm
Length:1000mm to 12000m
Product Overview
ASTM A270 Sanitary Tubing is the preferred choice for hygienic fluid transfer in the food, beverage, pharmaceutical, biotech, and chemical industries, delivering reliable performance in clean and sterile environments.
Key Features
- High-quality austenitic stainless steel with consistent dimensional uniformity.
Precise cold-drawing and sizing technologies guarantee ultra-tight outer diameter and wall thickness tolerances, completely eliminating alignment steps during high-purity piping installation.
- Controlled inner surface roughness to prevent bacterial contamination.
Advanced mechanical polishing and electropolishing (EP) strictly limit the inner wall roughness to $Ra \le 0.38 \mu m$ or better, preventing bio-film formation and ensuring zero media residue during fluid transfer.
- Engineered for automatic orbital welding with optimal sulfur control.
The chemical composition features an optimized, narrow sulfur range to ensure predictable bead penetration and perfectly flat welds, delivering crevice-free sanitary joints that eliminate dead legs.
- Strict hydrogen-nitrogen bright annealing for pristine surface chemistry.
Heat treatment is conducted in a 100% controlled atmosphere to completely prevent surface oxidation, followed by clean-room sealing to ensure the tubes arrive at the job site free of grease, dust, or moisture.
Chemical Composition
| Grade | C | Cr | Ni | Mo | Others |
|---|---|---|---|---|---|
| 304 | ≤0.08% | 18–20% | 8–11% | - | - |
| 304L | ≤0.03% | 18–20% | 8–12% | - | - |
| 316L | ≤0.03% | 16–18% | 10–14% | 2–3% | - |
Traceability: EN 10204 3.1 / 3.2 certificates provided.
Mechanical Properties
| Grade | Tensile (MPa) | Yield (MPa) | Elongation | Hardness |
|---|---|---|---|---|
| 304 | ≥515 | ≥205 | ≥35% | ≤90 HRB |
| 316L | ≥485 | ≥170 | ≥35% | ≤90 HRB |
Note: 316L offers superior chloride resistance, ideal for CIP/SIP systems.
Global Standards Compliance
| Market | Equivalent Standards | Key Certifications |
|---|---|---|
| USA | 3-A SSI, FDA 21 CFR | NSF, USDA |
| EU | EN 10357, DIN 11850 | EHEDG, PED |
| Japan | JIS G3447 | JIS H 4303 |
| Korea | KS D 3585 | KFDA |
Surface Finish & Dimensional Tolerances
- Finishes Compared
| Type | Ra (µm) | Application |
|---|---|---|
| Mechanical Polish | ≤1.2 | General food |
| Electropolish | ≤0.5 | Pharma / sterile |
| BPE Standard | ≤0.38 | Biotech |
- Common Sizes
OD: 1/2" to 6" (12.7 mm – 152.4 mm)
Wall Thickness: 1.65 mm – 3.05 mm (SCH 5S–40S)
Lengths: Standard 6 m; custom cuts with 0.1 mm precision
Customization Options
- Cutting to custom lengths beyond standard 6 m
- Optional surface finishes (electropolished, brushed, BPE, or custom coatings)
- OEM packaging & private labeling for project-specific requirements
Quality & Certifications
- ISO 9001:2015 certified
- FDA compliance, 3-A and EHEDG approved
- Material Traceability: EN 10204 3.1 / 3.2 MTR available
- Third-party inspections available upon request
Packaging & Delivery
- Standard: protective wrapping + wooden pallets
- Custom packaging solutions available per project requirements
- Logistics partners: DHL, FedEx, UPS; FOB/DDP shipping options
- Ensures damage-free delivery with visible grade markings and handling instructions
FAQ
Q1: What grades are available for ASTM A270 sanitary tubing?
A: 304, 304L, and 316L are standard; other grades available upon request.
Q2: Are the tubes suitable for CIP/SIP cleaning systems?
A: Yes, all tubes offer 3-A/EHEDG compliant surfaces and electropolished finishes for CIP/SIP.
Q3: Can these tubes be welded using orbital welding?
A: Yes, they are fully compatible with orbital welding, ensuring sterile, dead-zone-free joints.
Q4: What surface finishes are offered?
A: Mechanical polish, electropolish, BPE standard, and other custom finishes.
Q5: Are material test certificates available?
A: Yes, EN 10204 3.1 / 3.2 certificates are provided with every order.
Q6: What are the standard sizes and can custom lengths be supplied?
A: OD 1/2"–6", wall thickness 1.65–3.05 mm, standard length 6 m. Custom cuts available with 0.1 mm precision.
