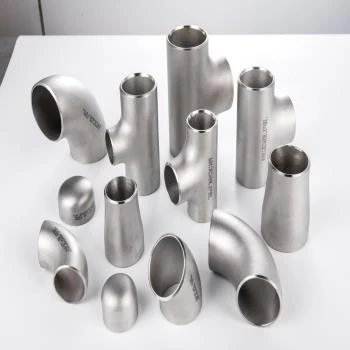

ASTM A403 Stainless Steel Pipe Fittings

Covering a variety of ASTM A403 stainless steel pipe fittings materials, such as WP304, WP304L, WP304H, WP304LN, WP304N, WP316, WP316L, WP316H, WP316LN, WP316N, WP316Ti, WP321, WP347, WP347H, etc. Different grades vary in chemical composition and performance to meet different use environments and requirements.

The manufacturing process of pipe fittings includes forging, rolling, welding, etc. The manufacturing process needs to follow strict process requirements to ensure the dimensional accuracy, shape accuracy and internal quality of the pipe fittings. For example, forged pipe fittings need to control parameters such as forging temperature and forging ratio to ensure the density and uniformity of the material; welded pipe fittings need to ensure the quality of the weld and conduct appropriate welding process assessment and inspection.

According to standard requirements, ASTM A403 stainless steel pipe fittings must have certain mechanical properties, such as tensile strength, yield strength, elongation, etc. These performance indicators ensure that the pipe fittings can withstand the corresponding loads and stresses during use without excessive deformation or rupture. Specific mechanical performance requirements vary depending on factors such as material grade, pipe type and size.

The standard has clear provisions for the size specifications of pipe fittings, including outer diameter, wall thickness, length, bending radius (for elbows), branch pipe size (for tees, crosses, etc.). At the same time, the corresponding size tolerance range is also specified to ensure the connection matching and installation accuracy between pipe fittings. For example, for a stainless steel elbow with an outer diameter of 100mm, the outer diameter tolerance may be specified as ±1mm, and the wall thickness tolerance may be ±0.5mm.

The surface of the pipe fittings should be smooth, free of defects such as cracks, folds, rolling, delamination, scarring, etc., to ensure the appearance quality and performance of the pipe fittings. For some special applications, special treatment of the surface of the pipe fittings may also be required, such as polishing, pickling, etc., to improve the surface finish and corrosion resistance.

Includes raw material inspection, intermediate inspection during production (such as flaw detection, dimensional inspection, etc.) and finished product inspection. Common inspection methods include visual inspection, non-destructive testing (such as ultrasonic testing, radiographic testing, magnetic particle testing, etc.), mechanical property testing, chemical composition analysis, etc. Only ASTM A403 stainless steel pipe fittings that have passed various inspections and meet the standard requirements can be recognized as qualified products.

Due to their good corrosion resistance and mechanical properties, ASTM A403 stainless steel pipe fittings are widely used in pipeline systems in the petroleum, chemical, natural gas, electric power, pharmaceutical, food and other industries. For example, in petrochemical plants, they are used for pipeline connections for conveying various corrosive media; in the food processing industry, they are used for fluid conveying pipelines with high sanitation requirements.

In short, ASTM A403 stainless steel pipe fittings have the advantages of strong corrosion resistance, good mechanical properties, long service life, safety and reliability, and are one of the indispensable accessories in various industrial pipeline systems.
