How to improve the corrosion resistance of 2205 stainless steel pipe?

As a supplier of 2205 stainless steel pipes, I understand the critical importance of corrosion resistance in various industrial applications. 2205 stainless steel is a duplex stainless steel known for its excellent combination of strength and corrosion resistance, making it a popular choice in many industries such as chemical processing, oil and gas, and marine environments. However, to ensure the long - term performance of 2205 stainless steel pipes, it is essential to take measures to further improve their corrosion resistance.

Understanding the Corrosion Mechanisms of 2205 Stainless Steel

Before delving into the methods of improving corrosion resistance, it is crucial to understand the corrosion mechanisms of 2205 stainless steel. The major types of corrosion that 2205 stainless steel may encounter include pitting corrosion, crevice corrosion, and stress - corrosion cracking.

Pitting corrosion occurs when the passive film on the surface of the stainless steel is damaged, allowing localized corrosion to take place in small pits. Crevice corrosion is likely to happen in crevices such as those between flanges or under gaskets, where the access of oxygen is restricted. Stress - corrosion cracking can occur when the steel is exposed to a corrosive environment under tensile stress.

Surface Treatment

One of the most effective ways to improve the corrosion resistance of 2205 stainless steel pipes is through surface treatment.

Passivation

Passivation is a chemical process that removes free iron and other contaminants from the surface of the stainless steel, and then forms a thin, protective oxide layer. This oxide layer acts as a barrier against corrosion. The passivation process typically involves immersing the 2205 stainless steel pipes in a solution of nitric acid or citric acid. Nitric acid passivation is a common method, but it requires careful control of the concentration, temperature, and immersion time. Citric acid passivation is a more environmentally friendly alternative. After passivation, the pipes should be thoroughly rinsed to remove any residual acid.

Electropolishing

Electropolishing is an electrochemical process that smooths the surface of the stainless steel. By removing surface irregularities, electropolishing reduces the sites where corrosion can initiate. This process also enhances the passive film on the surface, making it more resistant to pitting and crevice corrosion. Electropolished 2205 stainless steel pipes have a bright, mirror - like finish, which not only improves corrosion resistance but also gives an aesthetically pleasing appearance.

Alloying Elements

The composition of 2205 stainless steel can be adjusted to enhance its corrosion resistance.

Molybdenum

Molybdenum is a key alloying element in 2205 stainless steel. It improves the resistance to pitting and crevice corrosion, especially in chloride - containing environments. By increasing the molybdenum content within the allowable range, the corrosion resistance of the 2205 stainless steel pipes can be significantly enhanced.

Nitrogen

Nitrogen is another important alloying element. It strengthens the passive film on the surface of the stainless steel and improves its resistance to pitting and crevice corrosion. Nitrogen also enhances the mechanical properties of the steel, such as strength and toughness.

Design and Installation Considerations

Proper design and installation of 2205 stainless steel pipes can also contribute to improved corrosion resistance.

Avoiding Crevices

As mentioned earlier, crevices are prone to crevice corrosion. When designing and installing the pipes, efforts should be made to minimize the presence of crevices. For example, using smooth - fitting flanges and avoiding the use of gaskets that can trap moisture.

Proper Support and Alignment

Proper support and alignment of the pipes are essential to prevent stress - corrosion cracking. Uneven stress distribution can lead to the initiation of cracks, especially in corrosive environments. The pipes should be installed with appropriate supports at regular intervals to ensure uniform stress distribution.

Quality Control and Testing

Regular quality control and testing are necessary to ensure the corrosion resistance of 2205 stainless steel pipes.

Non - destructive Testing

Non - destructive testing methods such as ultrasonic testing, magnetic particle testing, and eddy - current testing can be used to detect any surface or subsurface defects in the pipes. These defects can act as initiation sites for corrosion.

Corrosion Testing

Corrosion testing can be carried out to evaluate the corrosion resistance of the pipes. Common corrosion testing methods include salt spray testing, immersion testing in specific corrosive solutions, and electrochemical testing. By conducting these tests, the effectiveness of the corrosion - prevention measures can be verified.

Product Comparison and Selection

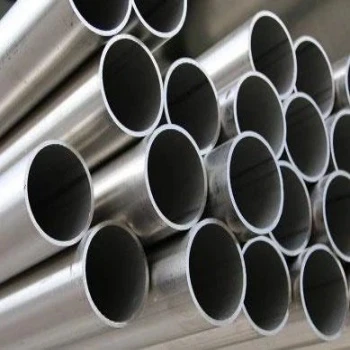

When it comes to stainless steel pipes, there are various standards and types available in the market. For example, ASTM A249 Welded Stainless Steel Tube is a popular standard for welded stainless steel tubes. It has its own set of requirements for chemical composition, mechanical properties, and corrosion resistance. Another option is UNS S44600 Seamless Steel Pipe, which offers different characteristics in terms of corrosion resistance and mechanical performance. The EN 10216 - 2 Hot - Finished Seamless Steel Tubes also provides a standard for hot - finished seamless steel tubes. As a supplier, we can help customers choose the most suitable product based on their specific application requirements.

Conclusion

Improving the corrosion resistance of 2205 stainless steel pipes is a multi - faceted approach that involves surface treatment, alloying element adjustment, proper design and installation, and rigorous quality control. By implementing these measures, we can ensure that the 2205 stainless steel pipes meet the high - performance requirements of various industries.

If you are in need of high - quality 2205 stainless steel pipes with excellent corrosion resistance, please feel free to contact us for more information and to discuss your procurement needs. We are committed to providing you with the best products and services.

References

• ASM Handbook Volume 13A: Corrosion: Fundamentals, Testing, and Protection.
• Stainless Steel Handbook, 4th Edition.
• Technical papers on corrosion of stainless steels in industrial environments.
